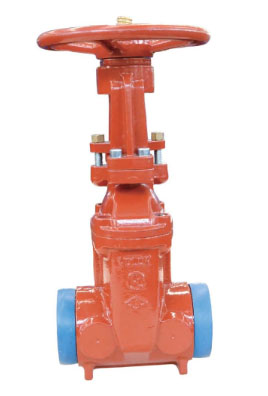

UL FM WRAS CE  OS&Y GROOVE GATE VALVE
Item No.: BRI-135G
Size: 2.5"-16"
Price: contact for newest price
MOQ: 10
PRODUCT DETAILS

AWWA C509 250PSI/300PSI RISING STEM

GROOVE JOINT ENDS RESILIENT WEDGE GATE VALVE


->Conforms to AWWA C509

Bolted bonnet.non-rising stem.resilient wedge.groove X groove conforms to AWWA C509


-->groove end conform to AWWA   C606


->Flange ends conform to ASME B16.1 Class 125


Fire protection valve.outide screw and yoke.resilient wedge.

epoxy coated interior/exterior.pre-grooved stem for supervisory switch.

drilled,tapped and plugged at boss location A


250PSI/300PSI bar non-shock cold working pressure(160 ◦F/71◦C max.operating tempperature)


Electrostatically applied fusion-bonded epoxy coated inside and outside per AWWAC-550
