Product Details
AS1221 swivel arm hose reel 36m
Share to:
AS1221 swivel arm hose reel 36m
Item No.: BRI-118WHR

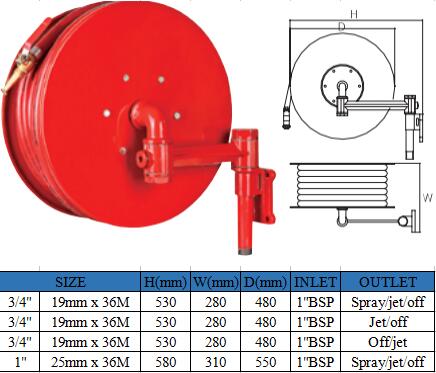

Size: DN19,DN25
Price: contact for newest price
MOQ: 100
PRODUCT DETAILS

AS1221 swivel arm hose reel 36m

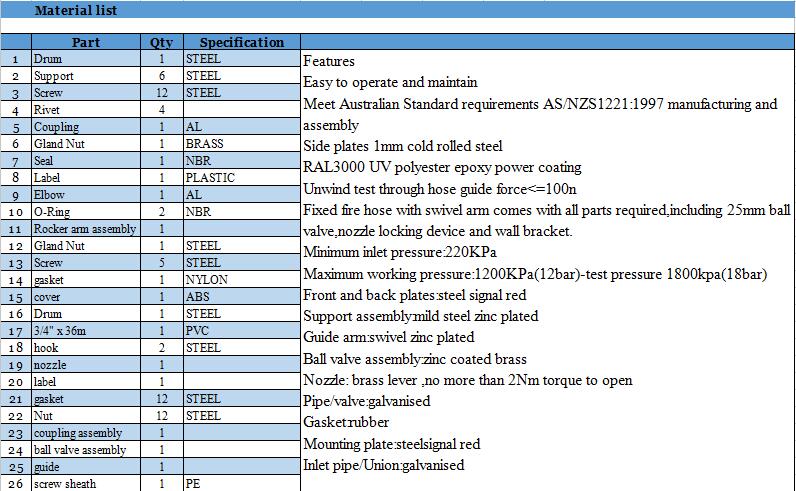

Features

Easy to operate and maintain

Meet Australian Standard requirements AS/NZS1221:1997 manufacturing and assembly

Side plates 1mm cold rolled steel

RAL3000 UV polyester epoxy power coating

Unwind test through hose guide force<=100n

Fixed fire hose with swivel arm comes with all parts required,

including 25mm ball valve,nozzle locking device and wall bracket.

Minimum inlet pressure:220KPa

Maximum working pressure:1200KPa(12bar)-test pressure 1800kpa(18bar)

Front and back plates:steel signal red

Support assembly:mild steel zinc plated

Guide arm:swivel zinc plated

Ball valve assembly:zinc coated brass

Nozzle: brass lever ,no more than 2Nm torque to open

Pipe/valve:galvanised

Gasket:rubber

Mounting plate:steelsignal red

Inlet pipe/Union:galvanised
