AS FIXED FIRE HOSE REEL
Share to:
AS FIXED FIRE HOSE REEL
Item No.: BRI-118FFH

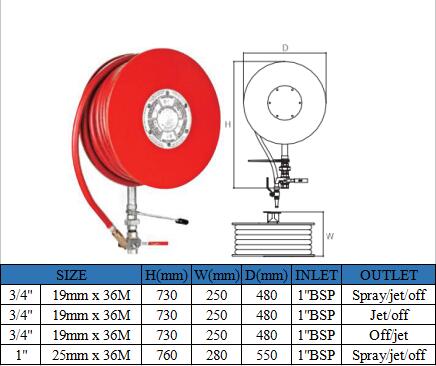

Size: DN19,DN25
Price: contact for newest price
MOQ: 100
PRODUCT DETAILS

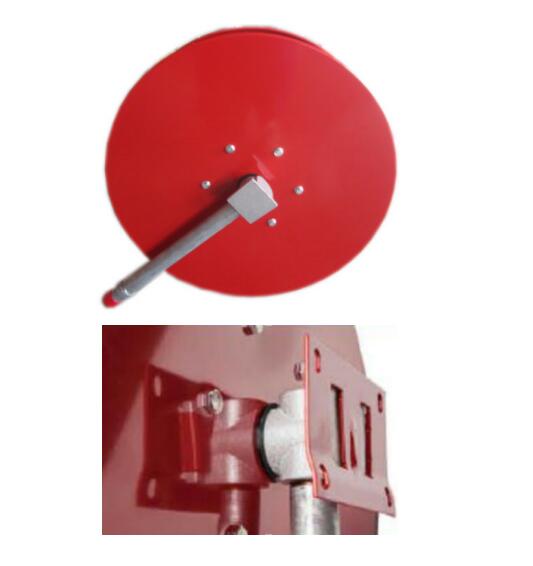

AS FIXED FIRE HOSE REEL

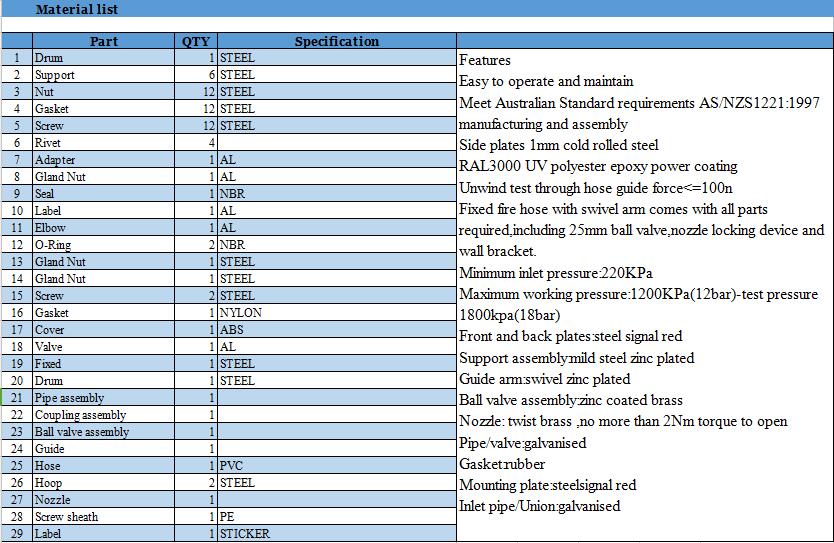

Features

Easy to operate and maintain

Meet Australian Standard requirements AS/NZS1221:1997 manufacturing and assembly

Side plates 1mm cold rolled steel

RAL3000 UV polyester epoxy power coating

Unwind test through hose guide force<=100n

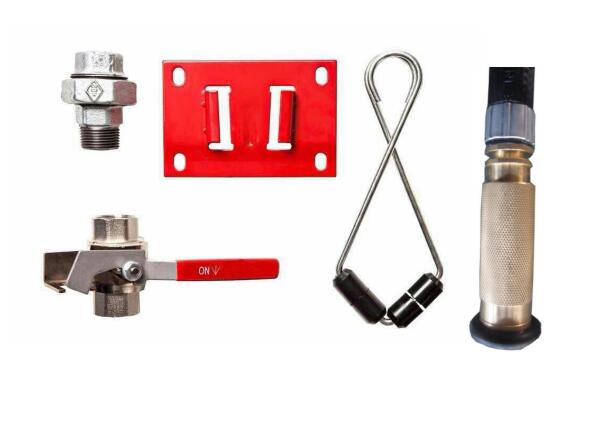

Fixed fire hose with swivel arm comes with all parts required,including 25mm ball valve,nozzle locking device and wall bracket.

Minimum inlet pressure:220KPa

Maximum working pressure:1200KPa(12bar)-test pressure 1800kpa(18bar)

Front and back plates:steel signal red

Support assembly:mild steel zinc plated

Guide arm:swivel zinc plated

Ball valve assembly:zinc coated brass

Nozzle: twist brass ,no more than 2Nm torque to open

Pipe/valve:galvanised

Gasket:rubber

Mounting plate:steelsignal red

Inlet pipe/Union:galvanised
